Friends School

  • 2103
  • 1
  • 0
  • آخر تحديث : 08-04-2014

A design of a primary school based on the concept of Friends Schools. The Friends School is based on Quaker values of community, spirituality, responsibility and stewardship. Particular focus is given to site analysis and treatment, landscaping and storm-water drainage. The proposed site in question is the ridge condition found at the tip of Jamaica Pond in Boston, MA. The pond is an extension of the Emerald Necklace that encompasses the Greater Boston Area.

  • topographic study model, with cut and fill
    topographic study model, with cut and fill
  • Friends School
  • program concept - a spinal circulation path along the slope filters students into the surrounding programs, getting them further into more private spaces. Wedge-like barriers not yet physically manifest define the transition between public and the more private spaces.
    program concept - a spinal circulation path along the slope filters students into the surrounding programs, getting them further into more private spaces. Wedge-like barriers not yet physically manifest define the transition between public and the more private spaces.

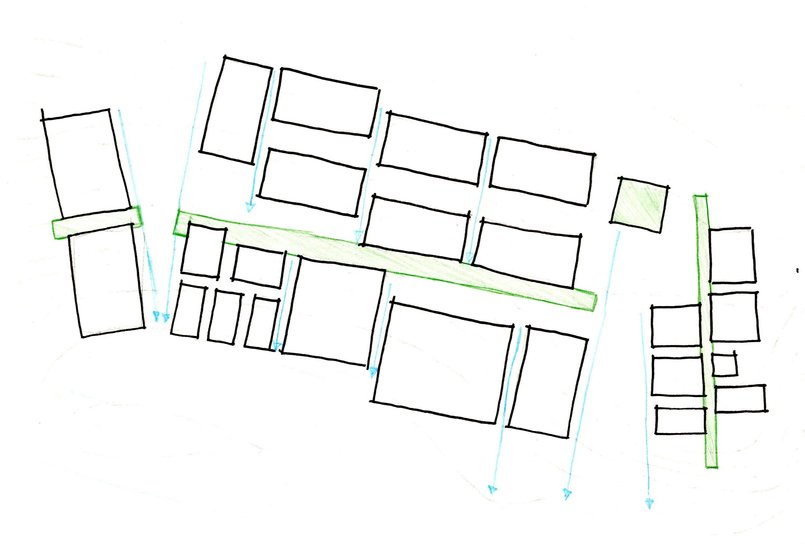

  • concept refined to layout - enclosed spaces have not yet been specified. Perpendicular drainage to the slope and circulation start to define wedge-shaped gardens.
    concept refined to layout - enclosed spaces have not yet been specified. Perpendicular drainage to the slope and circulation start to define wedge-shaped gardens.
  • programmatic sketching
    programmatic sketching
  • ground retaining element catalogue
    ground retaining element catalogue
  • concept in relation to topography and entries into the site
    concept in relation to topography and entries into the site
  • sectional site analysis - ridge condition with surrounding tree line.
    sectional site analysis - ridge condition with surrounding tree line.

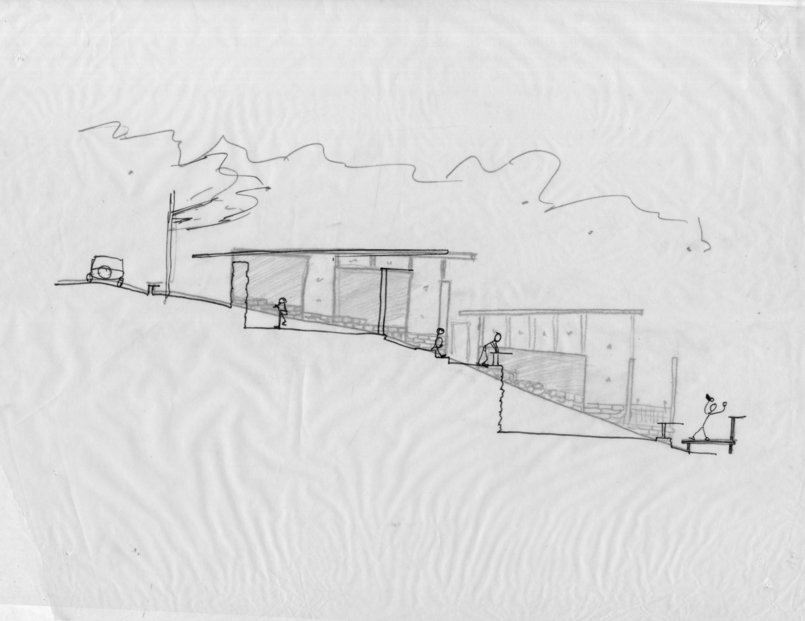

  • sketching in section
    sketching in section
  • sectional study model - thinking about enclosures, elevation changes
    sectional study model - thinking about enclosures, elevation changes
  • sectional study model
    sectional study model

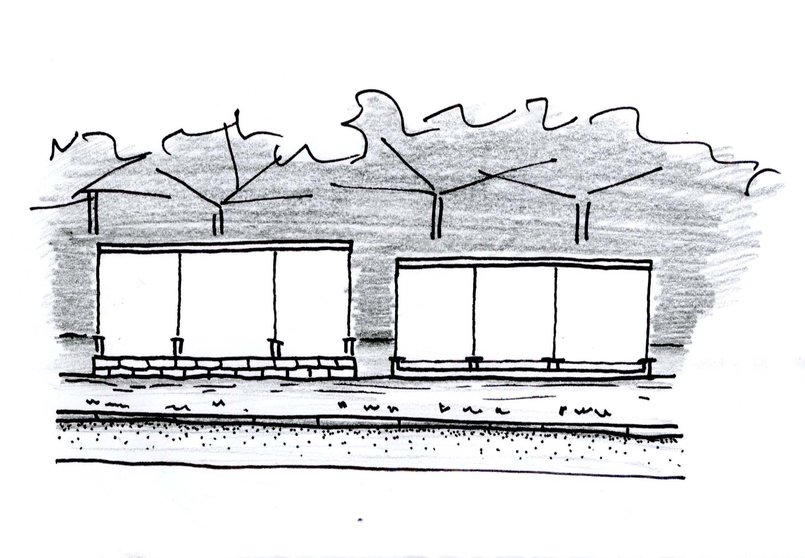

  • sketching in elevation - experimenting with materials, and implications of material change
    sketching in elevation - experimenting with materials, and implications of material change
  • study model - stereotomic retaining elements
    study model - stereotomic retaining elements
  • study model - competing densities of public vs. private programs. external entry points.
    study model - competing densities of public vs. private programs. external entry points.

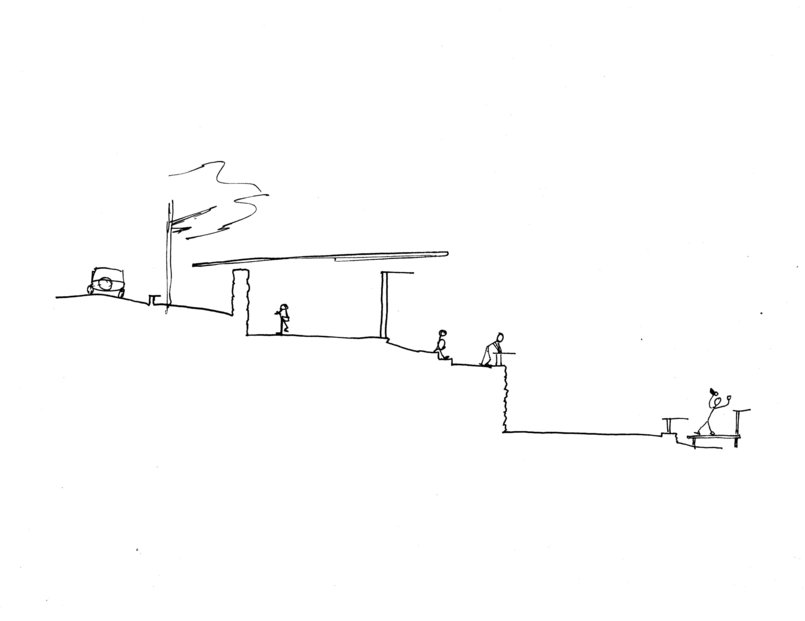

  • sketching in section - spatial qualities
    sketching in section - spatial qualities

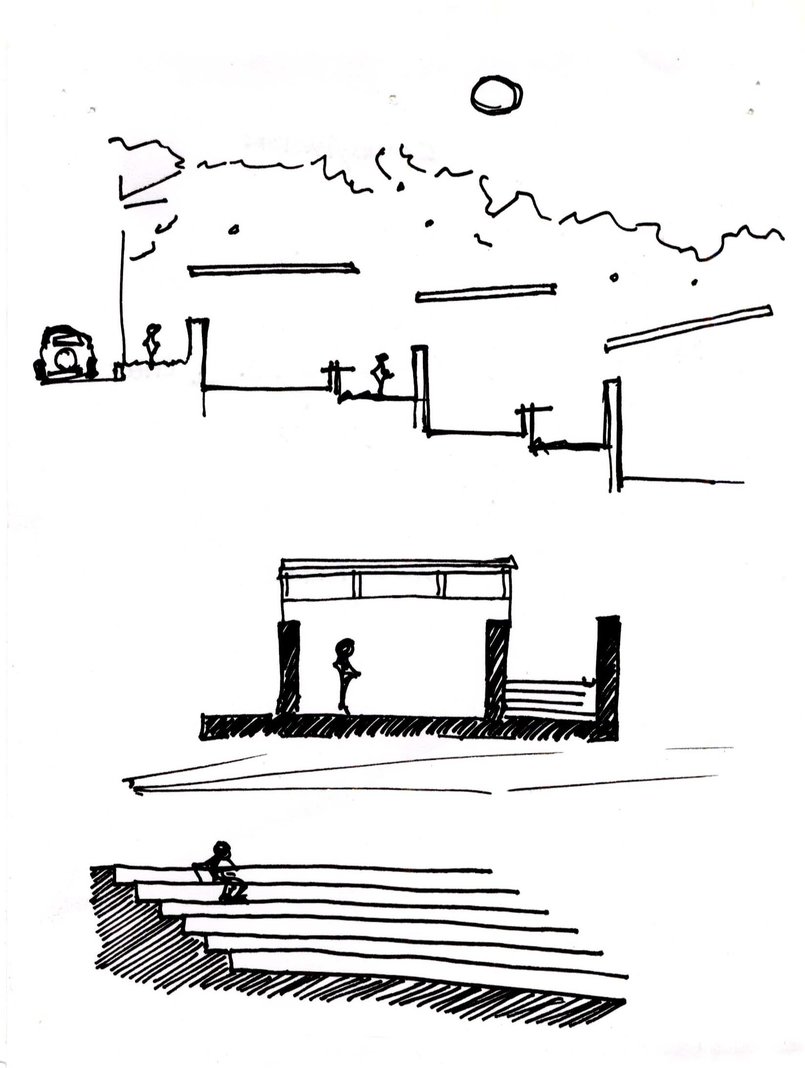

  • sketching in section - material and depth
    sketching in section - material and depth
  • sketch perspective
    sketch perspective

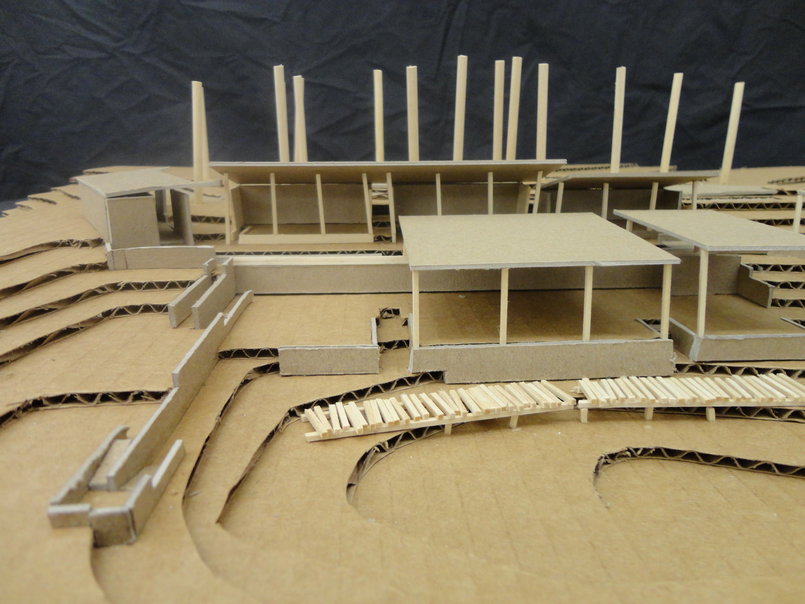

  • final model - alternate routes of circulation
    final model - alternate routes of circulation

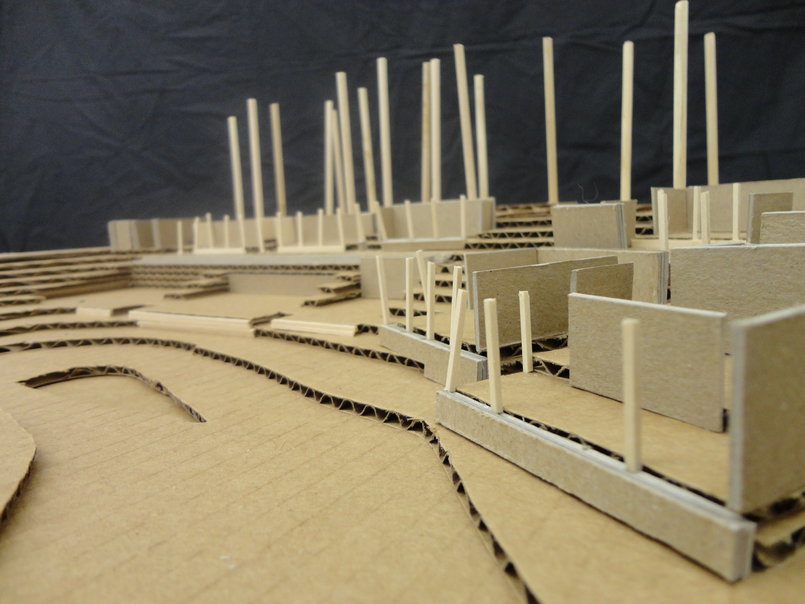

  • final model - separation of building sections, formation of wedge-gardens.
    final model - separation of building sections, formation of wedge-gardens.
  • final model
    final model
